PRODUCT
1 2

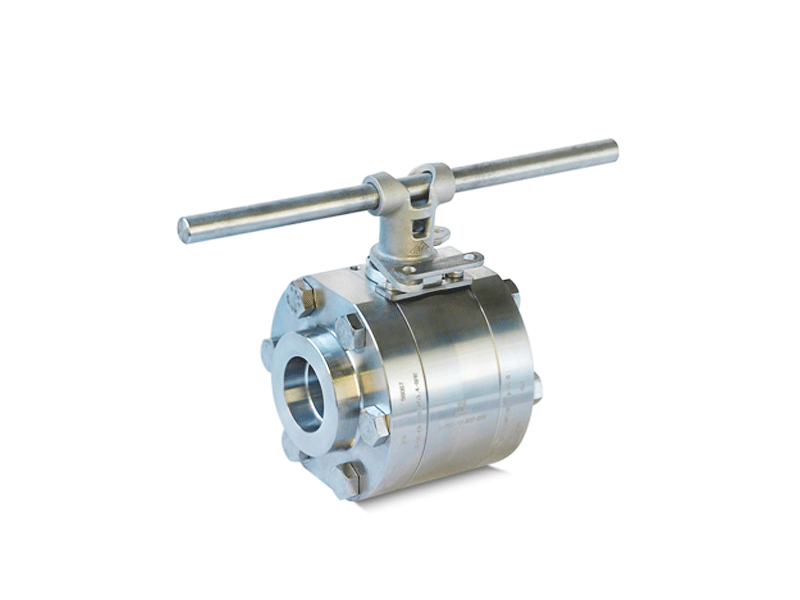

BALL VALVE ISO 17292
BALL VALVE ISO 17292
Q3 FIRE SAFE
CLASS 800, BAR
NPS 1/2"x3/8"-2"x1½"
CONSTRUCTION
Full or reduced bore, three piece body, maintenance in line, floating ball, relief seats, anti-static device, pressure balance hole in ball, blow-out proof stem.
CHARACTERISTICS
High performance, low emission double stuffing box.
Internal wetted parts are acc. NACE Standard MR0175
OPTIONS Nipples with SW, BW or male screwed ends
BS connection ISO 228/1
STANDARDS
Design ISO 17292
Connection Screwed (NPT) ASME
B1.20.1
Socket weld (SW) ISO 17292
Face to face Manuf, std.
Top flange ISO 5211
Testings ISO 5208
Fire safe tested ISO 10497
APPROVALS
Fire safe  Bureau Veritas
Type approval Bureau Veritas
GOST-Russian Federation
Arms
Clean air TA-Luft (TÜV-Südwest)&nb )
SERVICE TANKERS, CHEMICALS AND LPG

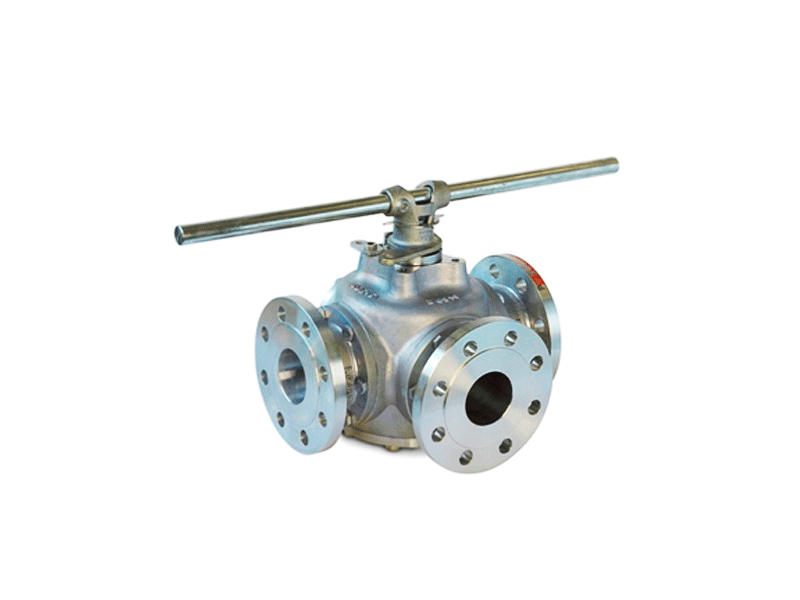

BALL VALVE ISO 17292
BALL VALVE ISO 17292
DV-F3 or 4 Ways
CLASS 150
NPS 1/2"-6"
CONSTRUCTION
Full bore in L, T, or X, floating ball, supported by four seats, relief seats, anti-static device, fire safe, pressure balance hole in ball, blow-out proof stem.
CHARACTERISTICS
High performance, low emission double stuffing box.
Internal wetted parts are acc. NACE Standard MR0103
OPTIONS ANSI Class 300
STANDARDS
Design ISO 17292
End Flanges acc. to ASME B16.5 RF
Face to face Estánd. fab.
Top flange          ISO 5211
Testings ISO 5208
APPROVALS
Type approval Bureau Veritas
GOST-Russian
Federation Arms
Clean air TA-Luft (TÜV-Südwest)&nb )
SIL Certification Exida Certification - SIL 3

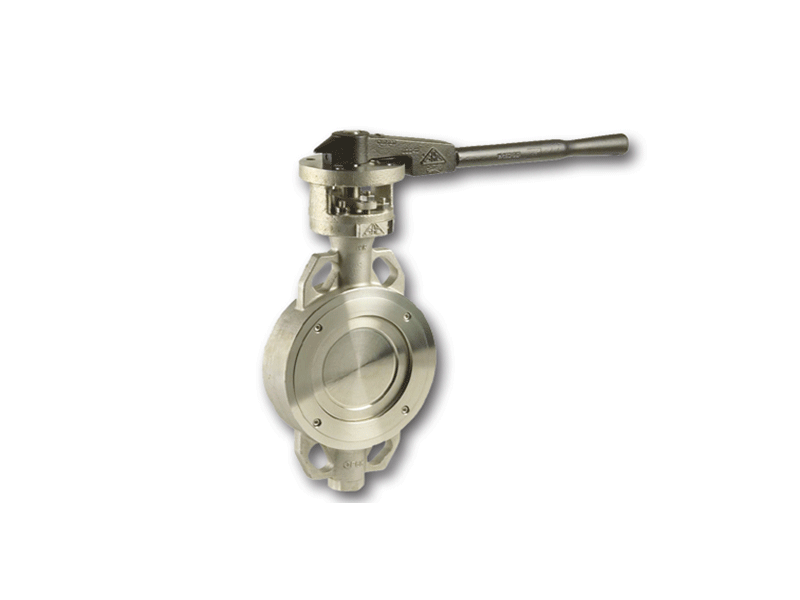

BUTTERFLY VALVE – API 609
BUTTERFLY VALVE API 609
WR WAFER
METAL METAL
CLASS 150,
NPS 3"-24"
CONSTRUCTION
Wafer body, double eccentric disc, adjustable stuffing box, Metal-Metal seats, anti-static device, fire safe, blow-out proof stem.
CHARACTERISTICS
Butterfly valve of high performance with metal-to-metal seats for high temperature applications and abrasive fluids.
Inconel 625 seats and disc with hard coating.
Internal wetted parts are in acc. to NACE Standard MR0175.
OPTIONS DIN connection
STANDARDS
Design API 609
End Flanges ASME B16.5 RF
Face to face API 609 cat. B
Top flange          ISO 5211
Testings API 598
Fire safe tested ISO 10497/ API 607
APPROVALS
Fire safe Bureau Veritas
Type approval Bureau Veritas
Det Norske Veritas
Germanischer Lloyd
Russian Maritime Register of Shipping
RINA
Clean air TA-Luft (TÜV-Südwest)&nb )
SERVICE METAL-METAL

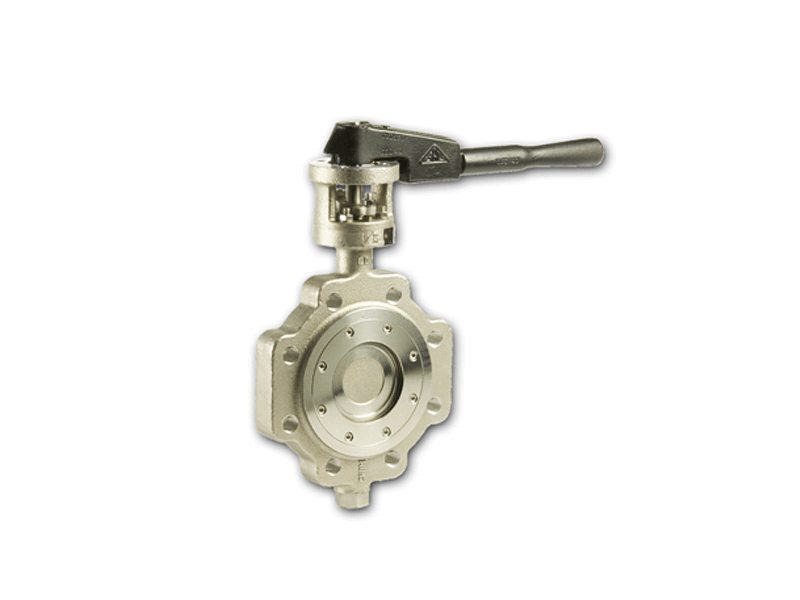

BUTTERFLY VALVE – API 609
BUTTERFLY VALVE API 609
LD LUGGED
METAL-METAL
CLASS 150-300
NPS 3"-24"
CONSTRUCTION
Wafer body, double eccentric disc, adjustable stuffing box, anti-static device, fire safe, blow-out proof stem.
CHARACTERISTICS
Butterfly valve of high performance with metal-to-metal seats for high temperature applications and abrasive fluids.
Inconel 625 seats and disc with hard coating.
Internal wetted parts are in acc. to NACE Standard MR0175.
OPTIONS Cryogenic service
DIN connection
STANDARDS
Design API 609
End ASME B16.5 RF
Face to face API 609 cat. B
Top flange ISO 5211
Testings API 598
Fire safe tested ISO 10497/ API 607
APPROVALS
Fire safe  Bureau Veritas
Type approval Bureau Veritas
Det Norske Veritas
Germanischer Lloyd
Russian Maritime Register of Shipping
RINA
Clean air TA-Luft (TÜV-Südwest)&nb )
SIL certification Exida Certification-SIL 3
SERVICE METAL-METAL
BUTTERFLY VALVE DIN
BUTTERFLY VALVE DIN
WR WAFER
PN 10-16-25-40
DN 80-600
CONSTRUCTION
Wafer body, double eccentric disc, adjustable stuffing box, anti-static device, fire safe, blow-out proof stem.
CHARACTERISTICS
Butterfly valve of high performance with bidirectional seats for all the pressures range.
PTFE seats with a core formed by a spring and a self-centring ring which give adaptability to changes of temperature and pressure.
Internal wetted parts are in acc. to NACE Standard MR0175.
OPTIONS Metal to metal tightness
Cryogenic service
STANDARDS
Design API 609
Connection EN 1092 part 1
Face to face API 609 cat. B
Top flange ISO 5211
Testings API 598
Fire safe tested ISO 10497
APPROVALS
Fire safe  Lloyd’s Register
Type approval Bureau Veritas
Det Norske Veritas
RINA
Clean air TA-Luft (TÜV-Südwest)&nb )
SERVICE TANKERS, CHEMICALS AND LPG

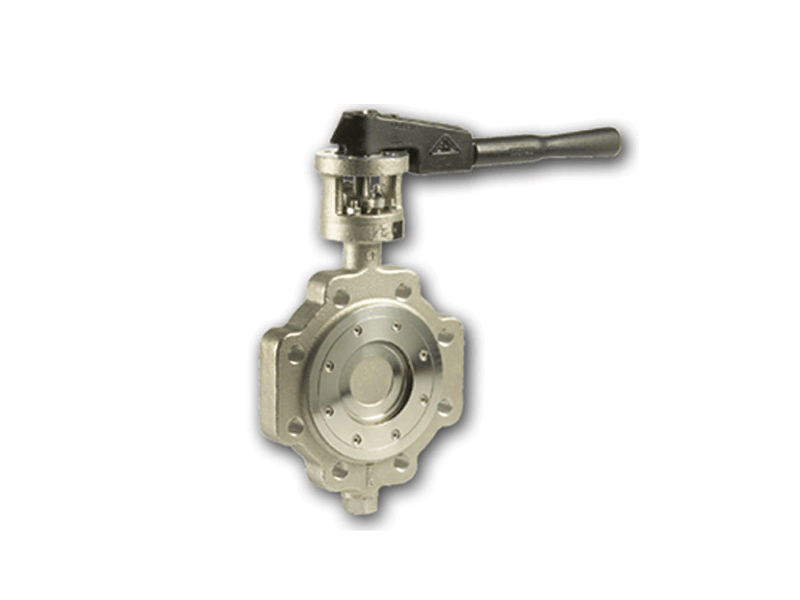

BUTTERFLY VALVE DIN
BUTTERFLY VALVE DIN
LD LUGGED
METAL-METAL
PN 10-16-25-40
DN 80-600
CONSTRUCTION
Lugged body, double eccentric disc, adjustable stuffing box, METAL-METAL seat , anti-static device, fire safe, blow-out proof stem.
CHARACTERISTICS
Butterfly valve of high performance with bidirectional seats for all the pressures range.
PTFE seats with a core formed by a spring and a self-centring ring which give adaptability to changes of temperature and pressure.
Internal wetted parts are in acc. to NACE Standard MR0175.
STANDARDS
Design API 609
Connection EN 1092 part 1
Face to face API 609 cat. B
Top flange ISO 5211
Testings API 598
Fire safe tested ISO 10497
APPROVALS
Fire safe  Lloyd’s Register
Type approval Bureau Veritas
Det Norske Veritas
RINA
SERVICE METAL-METAL

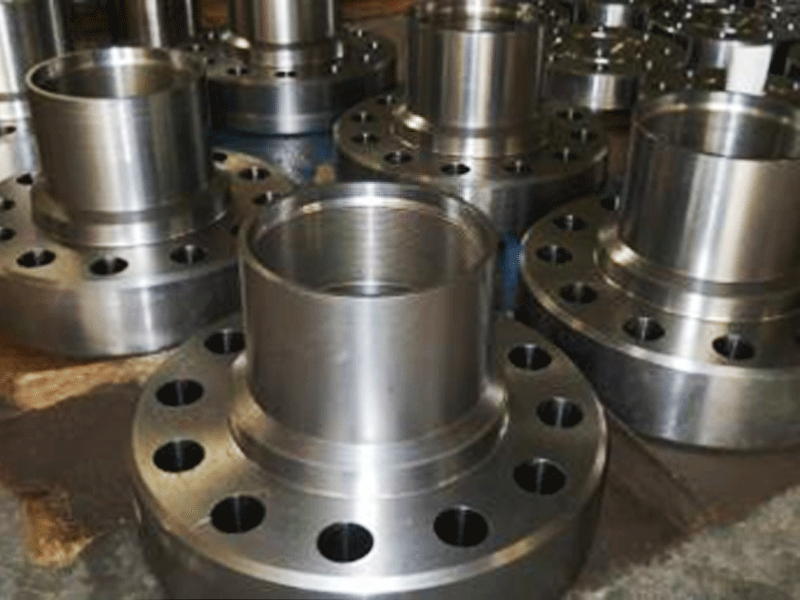

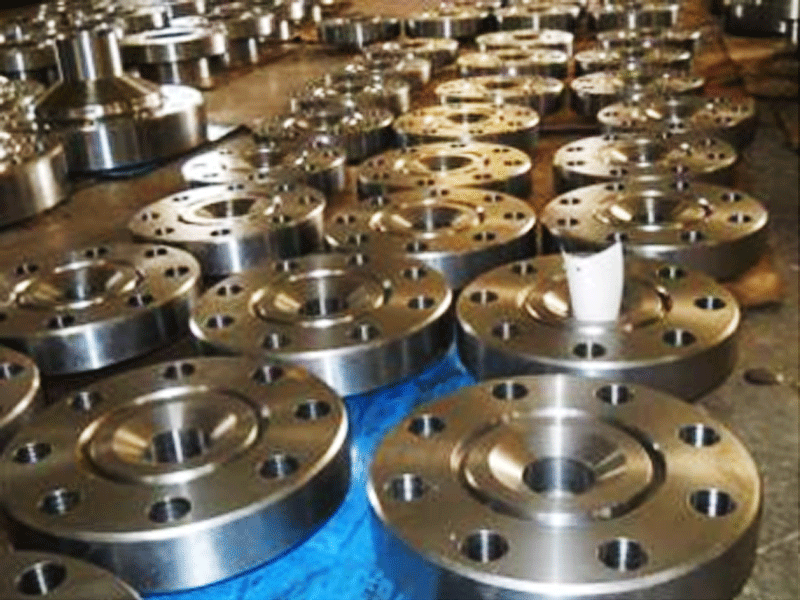

HIGH PRESSURE FLANGES
With dedicated manufacturing capability of our PARTENERS we are able to offer a very competitive package.

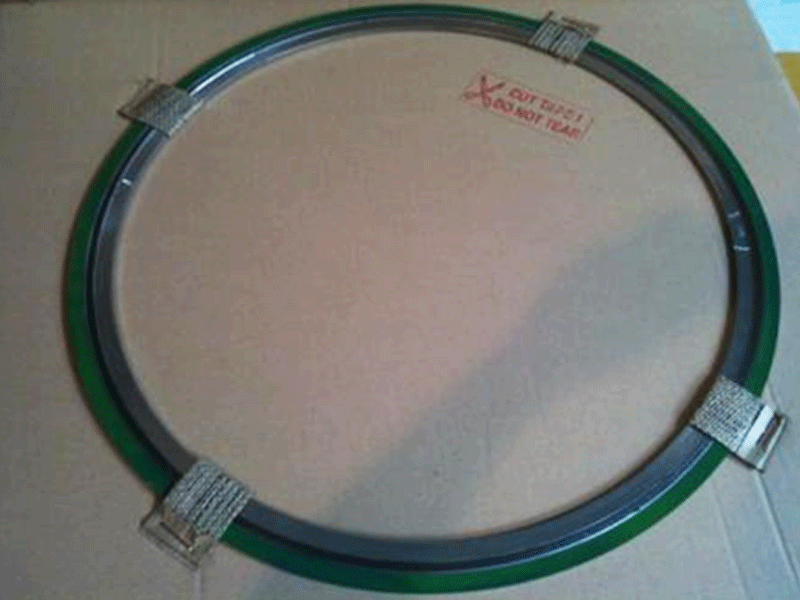

SPIRAL WOUND GASKETS
SPIRAL wound Gaskets 316 as per required size can be custom Manufacturer at short notice for all your onboard or plant piping and Pressure Vessel Needs,,, Why stock up when we can deliver at short notice…
PETROLUEM LABOTARARY EQUIPMENT
Your Labotarary needs are well supplied with Europe manufactured Testing Equipment to get a precious datasheet for all you CRUDE ANALYSIS onboard....
