PRODUCT
1

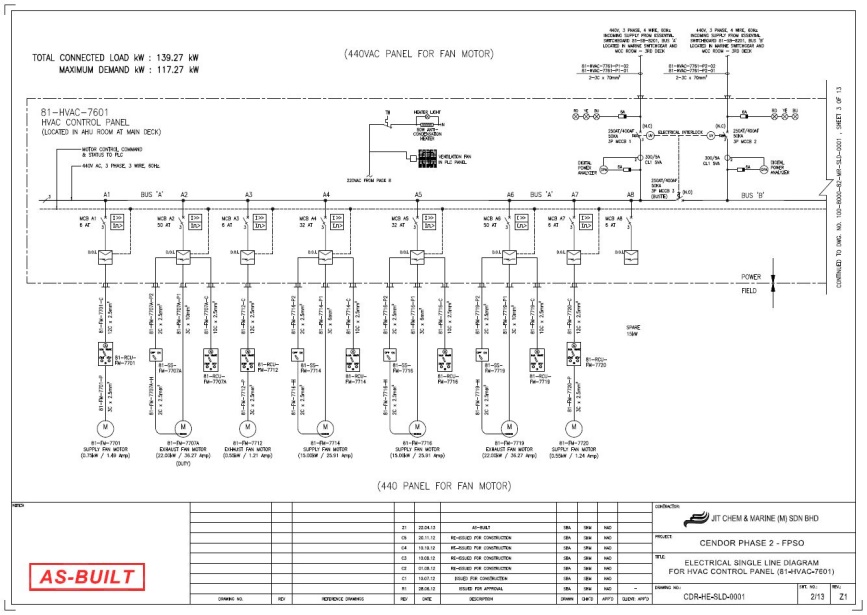

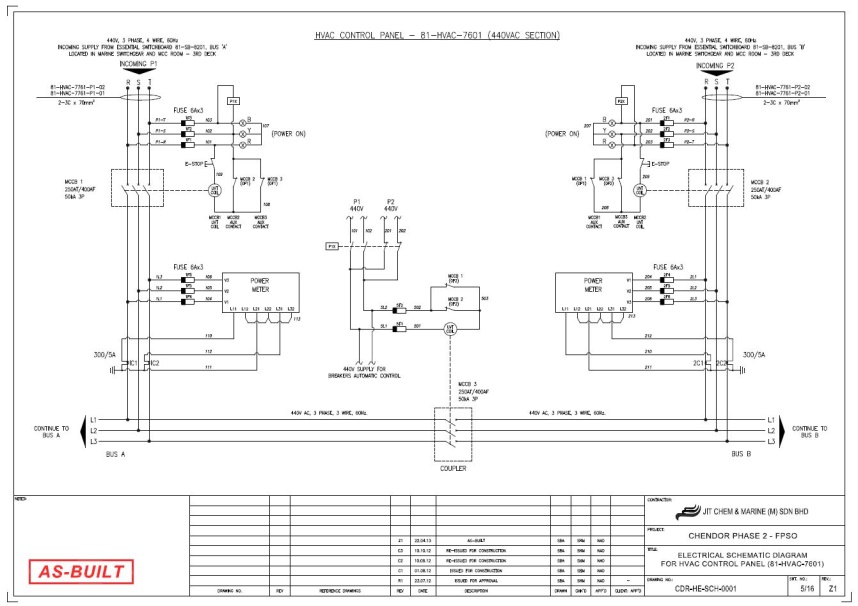

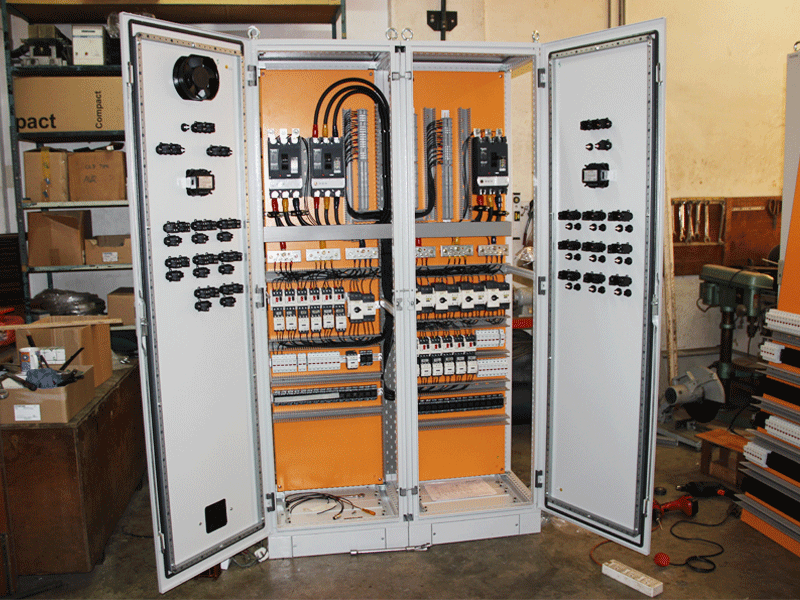

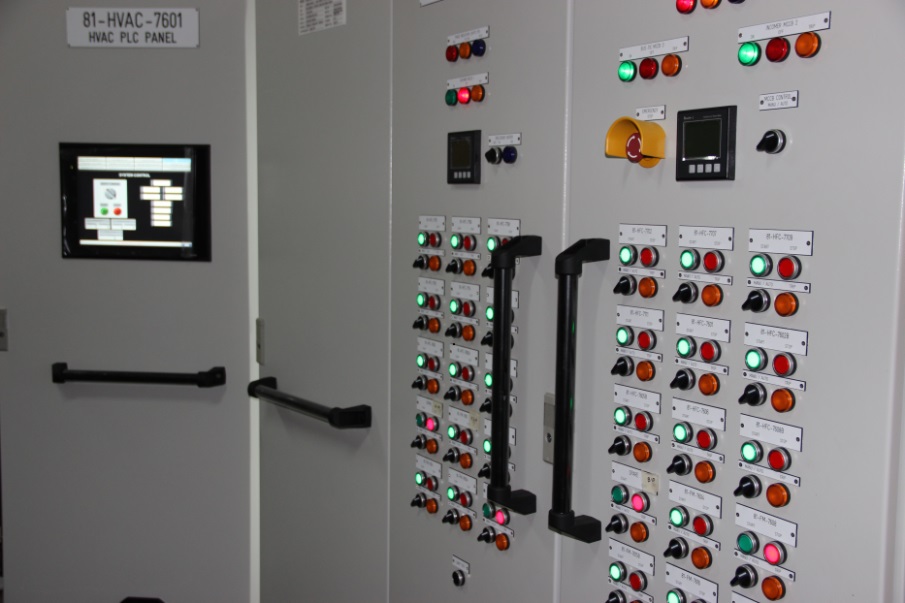

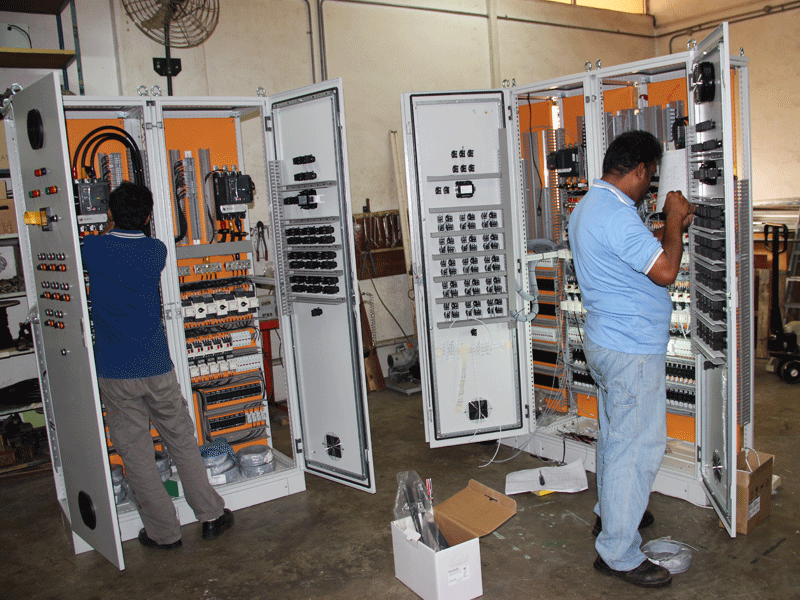

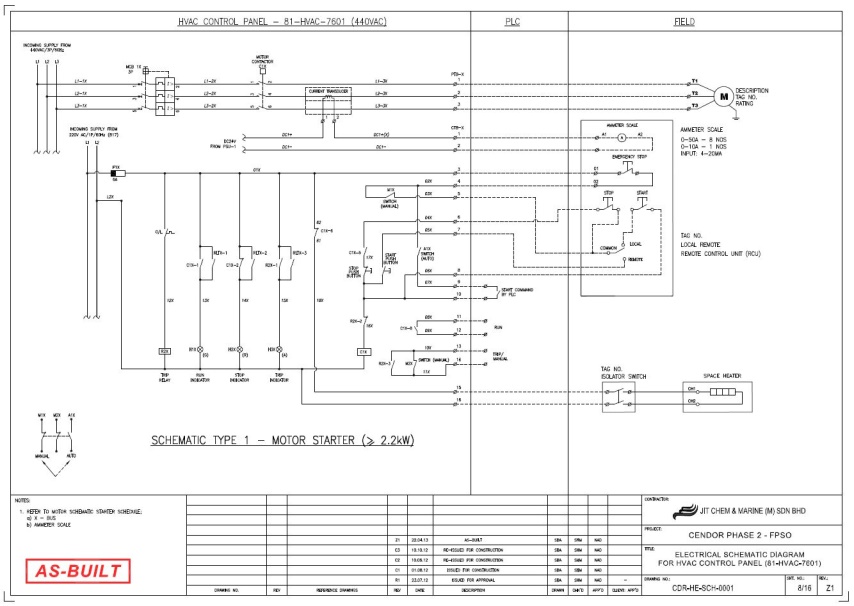

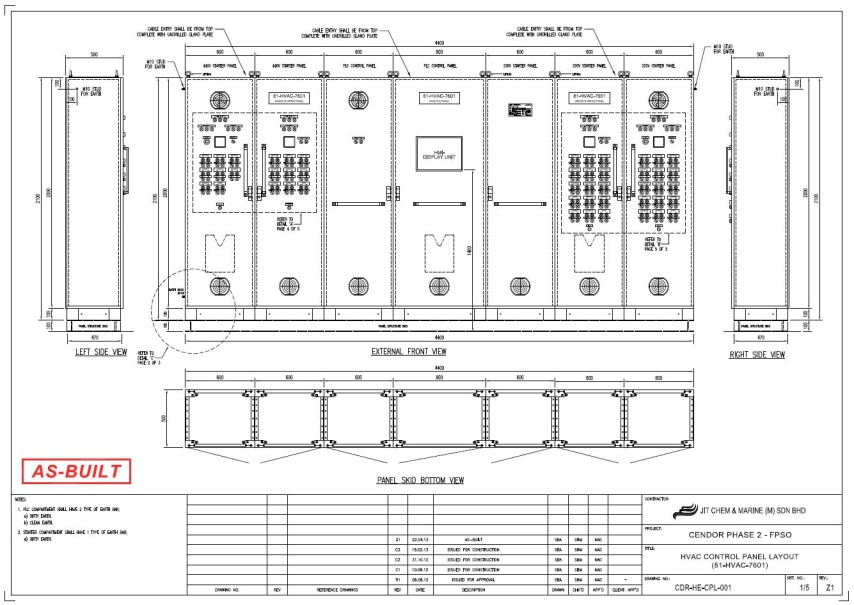

HVAC CONTROL PANEL / ELECTRICAL CONTROL PANEL / MOTOR CONTROL PANELS
You name it and we design and custom built to your requirement With or Without Class Approval. Any class form DNV, BV, ABS..we can get approval and certification…

ENGINEERING SERVICES

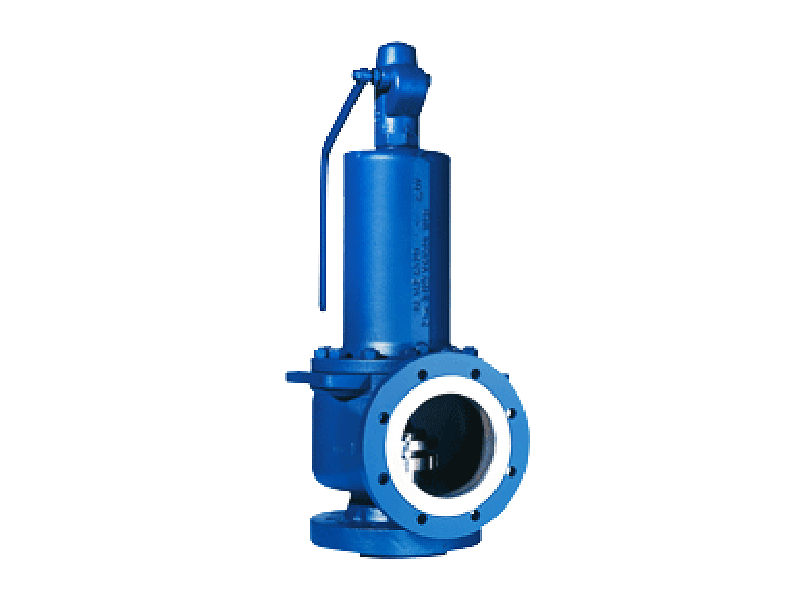

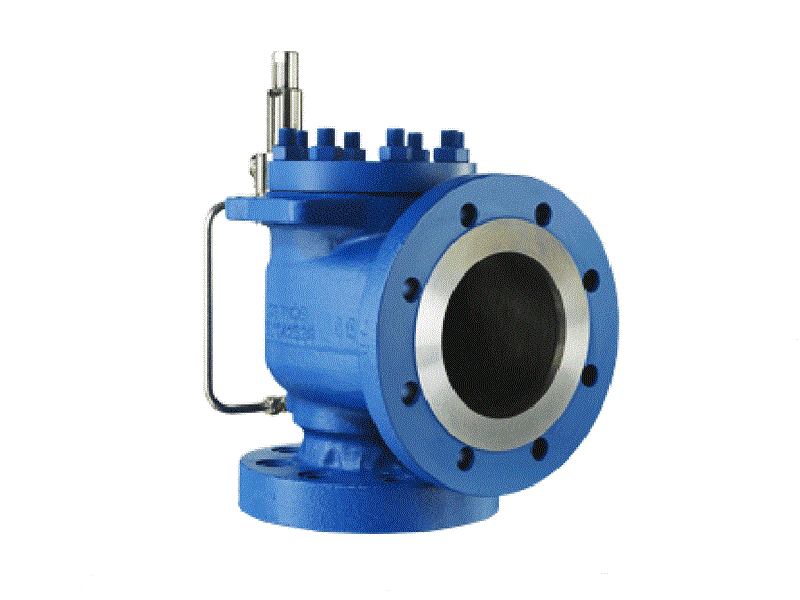

SAFETY RELIEF VALVE - FPSO AND OIL & GAS
Flanged safety valves that meet all the requirements of API 526 such as standardized orifices and center-to-face dimensions. Thier robust construction makes them especially suitable for high pressures and materials like Duplex, Monel or Hastelloy.

API 526

Product info Metric unit US unit
Key feature Fulfillment of API 526 Fulfillment of API 526
Nominal diameter inlet DN 25 - DN 200 1" - 8"
Orifice D -T D -T
Actual orifice diameter d0 14 - 161.5 mm 0.551 - 6.36 in
Actual orifice area A0 154 - 20485 mm2 0.239 - 31.75 in2
Pressure 0,12 - 413,8 bar 2 - 6000 psig
Flange rating inlet CL150 - CL2500 CL150 - CL2500
Temperature acc, to DIN EN -270 to 550 °C -454 to 1022 °F
Temperature acc, to ASME -268 to 538 °C -450 to 1000 °F
Body material 1_0619, 1_4408, 1_7357 SA 216 WCB, SA 351 CF8M, SA 217
WC6, SA 352 LCB, SA 351 CF3M, SA
995 Gr 4A CD3MN (Duplex), SA 494
M35-1 (Monel), SA 494 CX2MW
(Hastelloy), SA 494 CW-6MC (Inconel)
Valve connection Flange acc. to
ASME B 16.5
DIN EN 1092-1
JIS 2200		 Flange acc. to
ASME B 16.5
DIN EN 1092-1
JIS 2200
Bellows INCONEL ® 625 INCONEL ® 625 INCONEL ® 625 INCONEL ® 625
Type of loading Spring loaded Spring loaded
Approvals ASME Sec.VIIII Div_ 1. DGRL/DIN EN ISO 4126-1,
DGRL/AD 2000-Merkblatt A2, AQSIQ, TR/RTN,
CRN, GOST-K, GOSPROMNADZOR		 ASME Sec.VIIII Div_ 1. DGRL/DIN EN ISO 4126-1,
DGRL/AD 2000-Merkblatt A2, AQSIQ, TR/RTN,
CRN, GOST-K, GOSPROMNADZOR

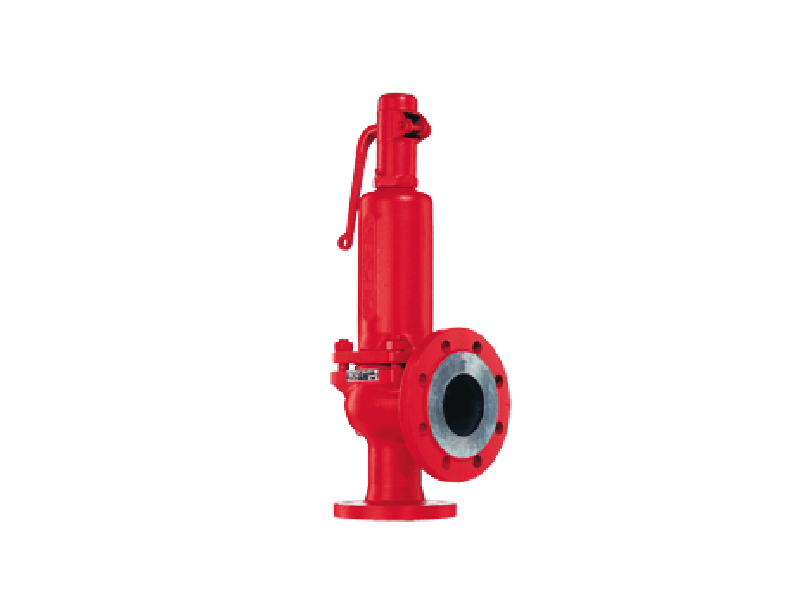

CRITICAL SERVICE
PTEE-lined flanged safety valves for corrosive media such as chlorine, acids, and lyes. With thier highly resitant lining they offer a safe solution for corrosive media.
ADVANTAGES
PTFE parts in different designs for optimized resistance to highly-corrosive media Economical alternative to high-alloyed materials Carrier gas blanketing using double-walled pipes is possible.
TECHNICAL SPECIFICATIONS
Nominal Diameter at Inlet DN 25-DN 100 | 1"- 4"
Orifice E-N | E-N
Actual Orifice Diameter d0 23 mm-92 mm | 0.91 in-3.62 in
Actual Orifice Area A0 415 mm2 - 6.648 mm2 | 0.645 in2 - 10.304 in2
Pressure 0.1 bar-16 bar | 1.45 psig - 232 psig
Temperature -85 C to 200 °C | -121 F to 392 °F
Body Material 0.7043, 1.0460, 1.0619, 1.4404 |
Ductile Gr.60-40-18,
Sa 216 WCB, 316L
Valve Connection Flange in accordance with D|
N EN 1092-1 and ASME B 16.
Bellows Stainless steel, PTFE
Load Type Spring loaded

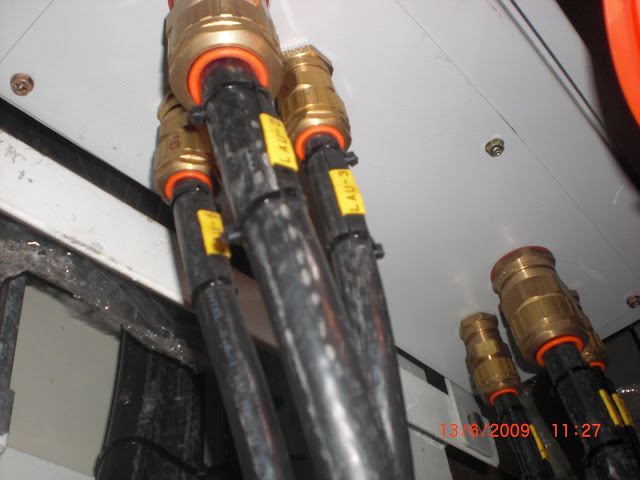

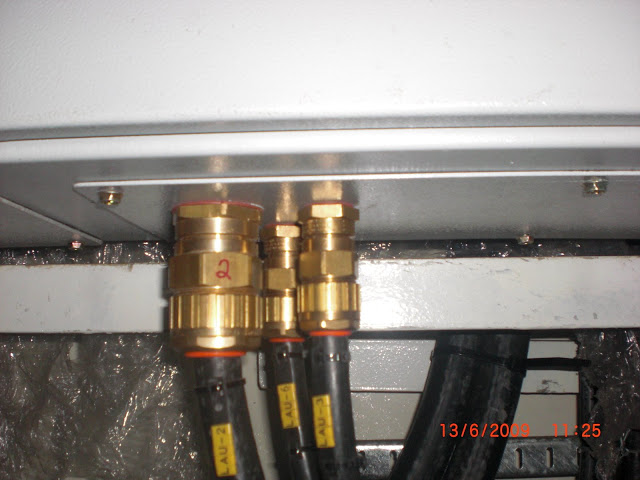

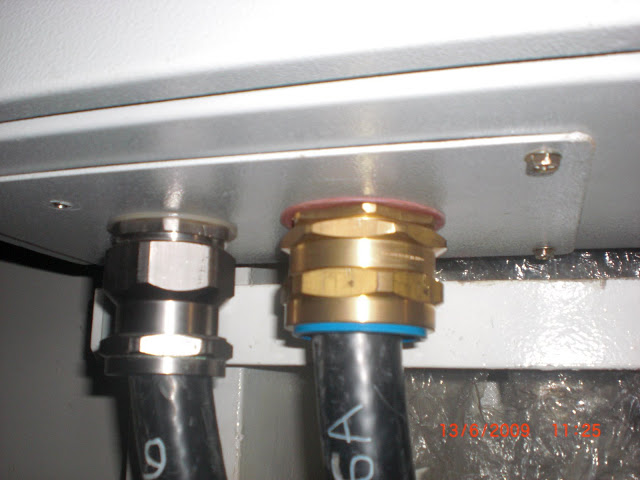

BARRIER CABLE GLAND - ZONE 1 & 2
We STOCK Marine Cable Glands and Ex barrier cable Glands in brass or Nickel Plated for the MARINE, PROCESS and oil & Gas Sector
EXIOS + Standard
These cable glands are designed for use in "Hazardous Areas". The high-end design Exios already has certification in accordance with the most recent, tightened-up IECEx and ATEX standards.
Protection: IP 66/67/68 - 5 bar
Seals: Silicone, VMQ
Clamping insert: PA 6
Seal: Silicone, VMQ
Operating-Temperature: -60 °C to 105 °C
Material: Nickel-plated brass brass
Armour: Metallic Armour or Screen
Certificate: II 2G Ex de IIC Gb
II 1D Ex ta IIIC Da
EXIOS + A2F
Heavy-duty cable glands for use in "Hazardous Areas"
Protection: IP 66/67/68 - 5 bar
Seals: Silicone, VMQ
Clamping insert: PA 6
Seal: Silicone, VMQ
Operating-Temperature: -60 °C to 105 °C
Material: Brass Nickel-plated brass
Armour: Metallic Armour or Screen
Certificate: II 2G Ex de IIC Gb
II 1D Ex ta IIIC Da
EXIOS + Barrier
Cable gland for use in "Hazardous Areas". A sealant provides here a seal around each cable core.
Protection: IP 66/67/68 - 5 bar
Seals: Silicone, VMQ
Clamping insert: PA 6
Seal: Silicone, VMQ
Operating-Temperature: -60 °C to 85 °C
Material: Nickel-plated brass
Brass Stainless steel
O-Ring: VMQ
Armour: Metallic Armour or Screen
Compound: Two-component epoxy compound
Certificate: I M2 Ex de I Mb IIC Gb
I M2 Ex ta IIIC Da

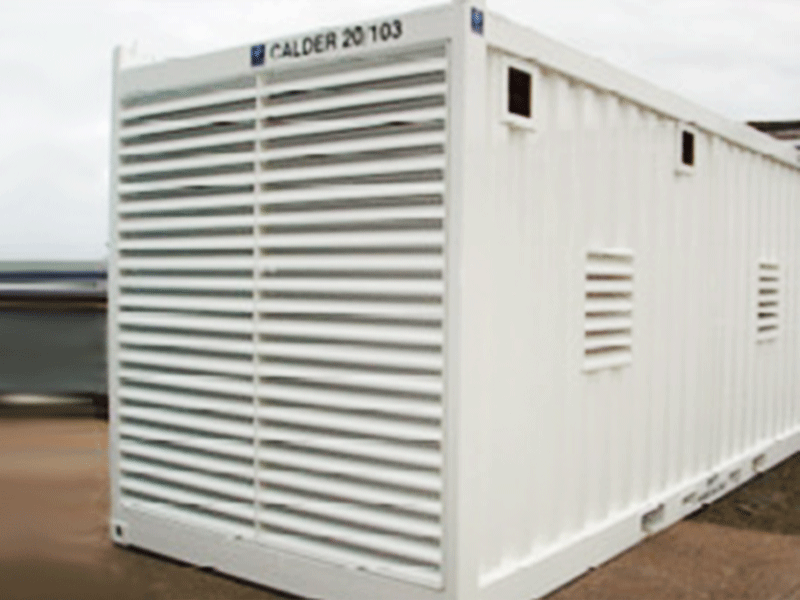

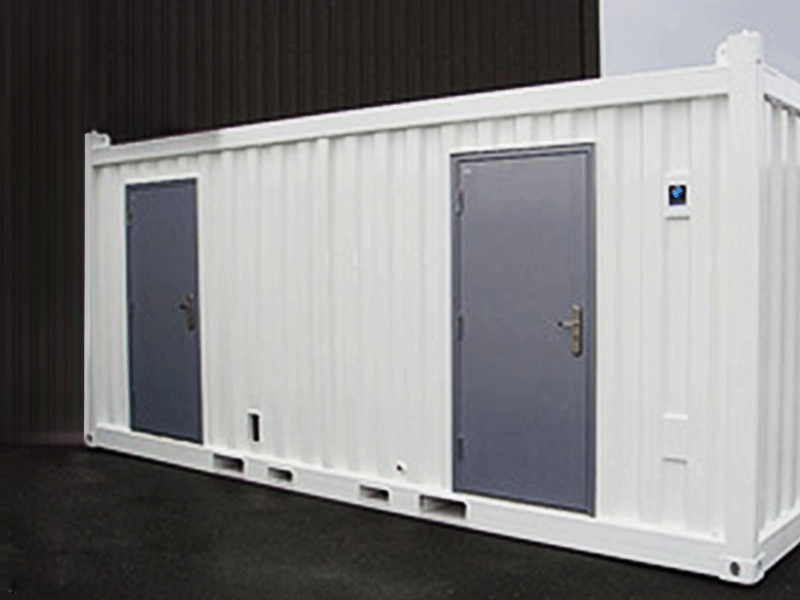

DNV 2.7-1 – OFFSHORE CABIN – A0 & A60 FIRE RATED
We design and fabricate A0 and A60 fire rated OFFSHORE CABIN for ZONE 2 (Class 1 Div2) with our technical collaboration with ISO CERTIFIED  fabricators for a ONTIME DELIVERY…for your LABORATORY AND WORKSHOP CABIN

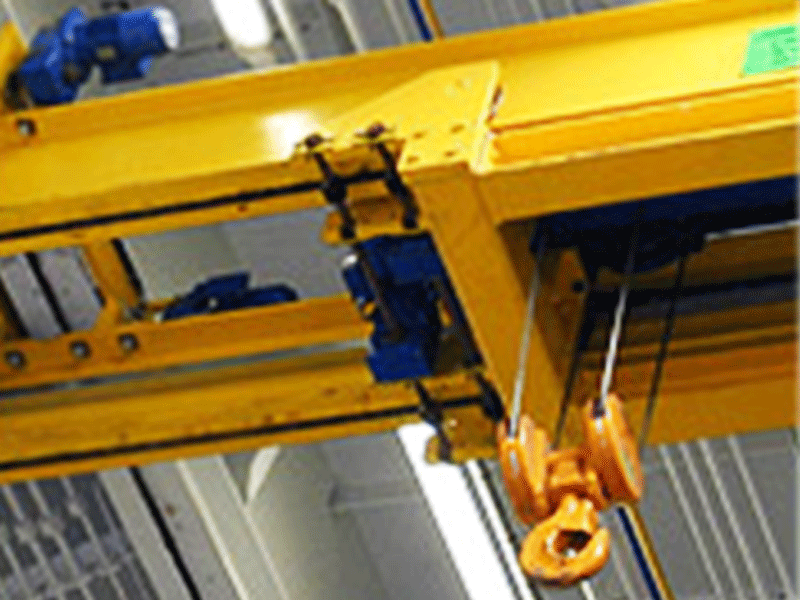

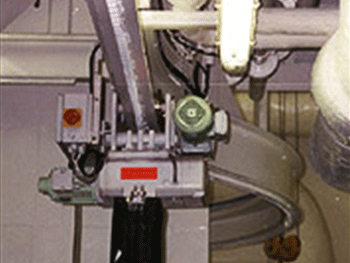

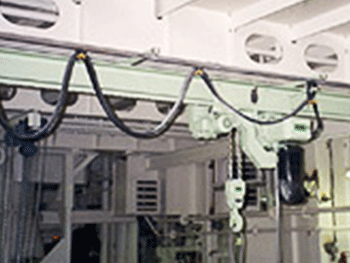

ENGINE ROOM OVERHEAD CRANE & GANTRY CRANE
We are able to Design, Fabricate and Supply the MARINE APPROVED Engine room OVER HEAD crane and SHIP gantry crane with our technical partnership with Manufacturer from Germany.

MARINE AND API 6D  BALL  VALVES – CLASS 150 – 1500
Require Marine Valves at short notice ( Class 150 – 1500 ) You are at the right spot… we source from Japan, Korea, UK, USA and Europe for MARINE VALVES from Class 150 – 1500.We aslo provide API 6D BALL VALVES  for your OFFSHORE needs. All the manufacturers are reowned Manufactures with over 20-50 Years in the Industry.

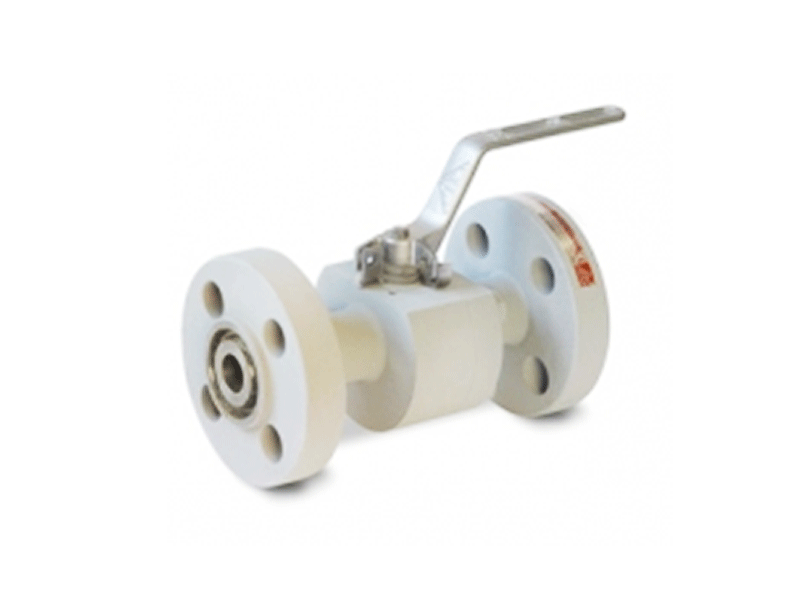

BALL VALVE API 6D
CLASS 150-300-600-900-1500
NPS 1/2"-8"x6"
CONSTRUCTION
Full or reduced bore, top entry body, floating ball, relief seats, anti-static device, fire safe, pressure balance hole in ball, blow-out proof stem.
CHARACTERISTICS
High performance low emission double stuffing
Internal wetted parts are in acc. to NACE Standard MR0175.
OPTIONS Extended stems Cryogenic service
Class A BW and Pup Pieces
STANDARDS
Design ISO 14313 / API 6D
End Flanges ASME B16.5 RF  // BW B16.25
Face to face ASME B16.10 long pattern
Top flange          ISO 5211
Testings ISO 14313 /API 6D
Fire safe tested        ISO 10497/ API 607
APPROVALS
Fire safe Bureau Veritas
Clean air TA-Luft (TÜV-Südwest)
BALL VALVE API 6D
CLASS 600-900-1500-2500
NPS 1/2"-6"x4"
CONSTRUCTION
Full or reduced bore, two or three piece body, floating ball, relief seats, anti-static device, fire safe, pressure balance hole in ball, blow-out proof stem.
CHARACTERISTICS
High performance low emission double stuffing
iInternal wetted parts are in acc. to NACE Standard MR0175.
OPTIONS Extended stems Cryogenic service
Metal to metal tightness   BW, Fully welded
STANDARDS
Design ISO 14313 / API 6D
End Flanges ASME B16.5 RF  // RTJ
Face to face ASME B16.10 long pattern
Top flange          ISO 5211
Testings ISO 14313 /API 6D
Fire safe tested        ISO 10497/ API 607
APPROVALS
Fire safe Bureau Veritas
Type approval Bureau Veritas
GOST-Russian Federation Arms
Russian Maritime Register of Shipping
ABS
Clean air TA-Luft (TÜV-Südwest)
SIL Certification Exida Certification - SIL 3

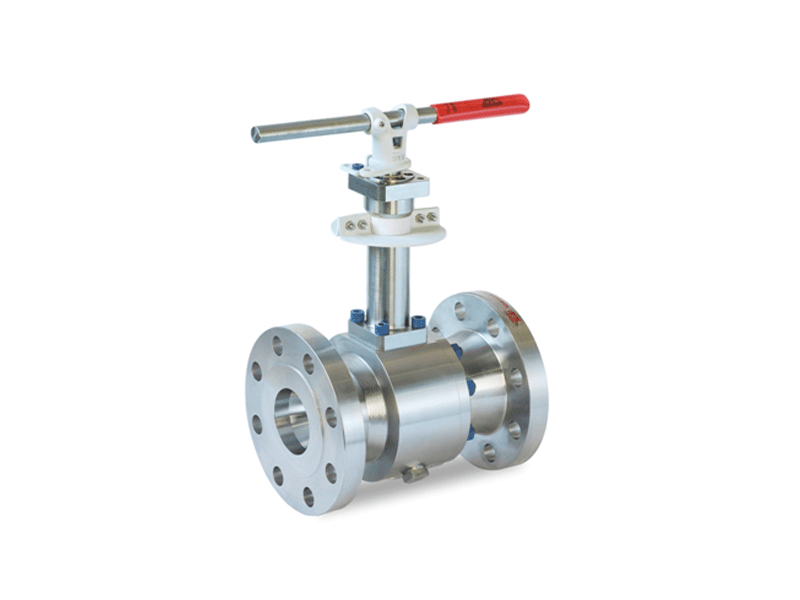

BALL VALVE API 6D
APT LOW TEMPERATURE -50ºC
CLASS 600-900-1500-2500
NPS 1/2"-6"x4"
CONSTRUCTION
Full or reduced bore, two or three piece body, double "block & bleed"trunnion mounted ball, relief seats, extended bonnet (vapor space), anti-static device, fire safe, blow-out proof stem.
CHARACTERISTICS
Watertight in the high performance stem and low emission.
Internal wetted parts are in acc. to NACE Standard MR0175.
OPTIONS Extended stems Cladding
Emergency fittings  Lip-seal BW welded, Hub ends
STANDARDS
Design ISO 14313 / API 6D
End Flange ASME B16.5 RF // RTJ
Face to face ASME B16.10 long pattern
Top flange          ISO 5211
Testings ISO 14313 /API 6D
Fire safe tested        ISO 10497/ API 607
APPROVALS
Fire safe Bureau Veritas
Type approval Bureau Veritas
GOST-Russian Federation Arms
Russian Maritime Register of Shipping
Shell Global Solutions
Clean air TA-Luft (TÜV-Südwest)
SIL Certification Exida Certification - SIL 3

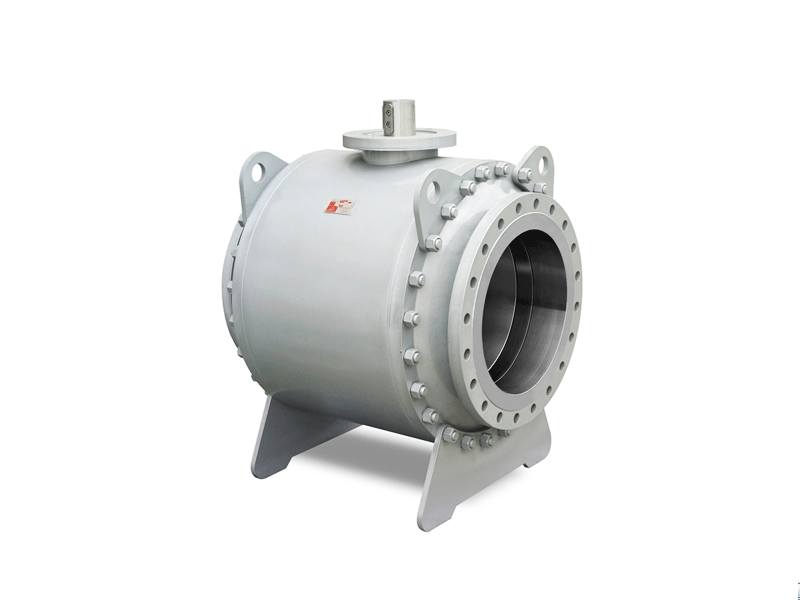

BALL VALVE API 6D
CLASS 150-300-600-900-1500-2500
NPS 6"-24"
CONSTRUCTION
Full or reduced bore, two or three piece body, trunnion mounted double "block & bleed" ball, double stem seal, relief static device, fire safe, blow-out products.
CHARACTERISTICS
Watertight in the high performance stem and low emission.
Internal wetted parts are in acc. to NACE Standard MR0175
Easy operation at high pressures.
OPTIONS Metal tightness Cryogenic
Emergency fittings  Double piston effect Cladding
BW Hub ends  NPS up to 42"   Lip-seal
STANDARDS
Design ISO 14313 / API 6D
End Flange ASME B16.5 RF // RTJ
Face to face ASME B16.10 long pattern
Top flange          ISO 5211
Testings ISO 14313 /API 6D
Fire safe tested        ISO 10497/ API 607
APPROVALS
Fire safe Bureau Veritas
Type approval Bureau Veritas
ABS
Russian Maritime Register of Shipping
GOST-Russian Federation Arms
Clean air TA-Luft (TÜV-Südwest)
SIL Certification Exida Certification - SIL 3
SERVICE TANKERS, CHEMICALS AND LPG

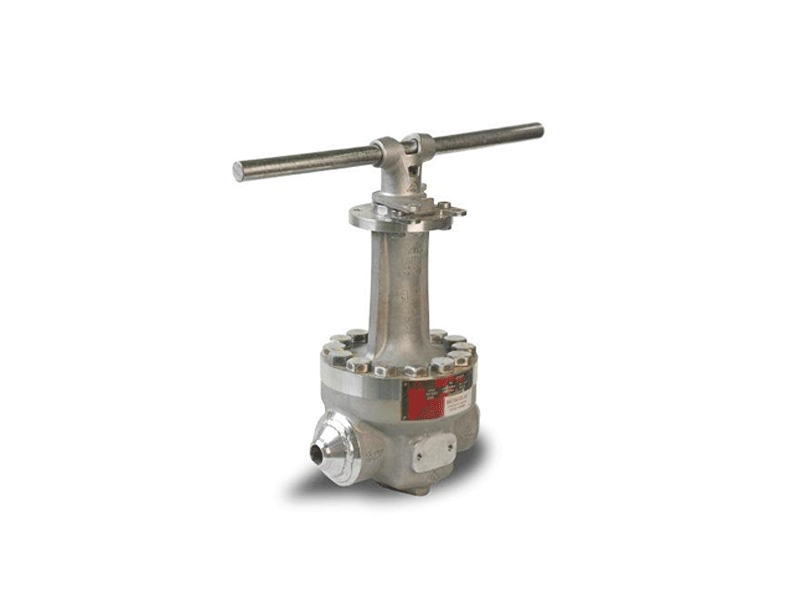

BALL VALVE API 6D
TEV "Top Entry"
CRYOGENIC -200 ºC
WELDED BW
CLASS 150-300-600-900-1500
NPS 1/2"-10"
CONSTRUCTION
Full bore, one piece "Top Entry" body, double "block & bleed"trunnion mounted ball,  relief seats, anti-static device, extended bonnet (vapor space), ball with relief hole, fire safe, blow-out proof stem.
CHARACTERISTICS
Internal wetted parts are in acc. to NACE Standard MR0175.
Effective tight seal event at low differencial pressures.
Easy operation at high pressures.
Maintenance in line.
OPTIONS Double piston seats
API 6D
STANDARDS
Design API 6D
End ASME B16.35
Face to face ASME B16.10 long pattern
Top flange          ISO 5211
Testings API 6D
Fire safe tested        ISO 10497 / API 607
Leakage cryogenic BS 6364
APPROVALS
Fire safe tested Bureau Veritas
Clean air TA-Luft (TÜV-Südwest)
SERVICE CRYOGENIC
SPECIALISED GAS
TANKERS, CHEMICALS AND LPG

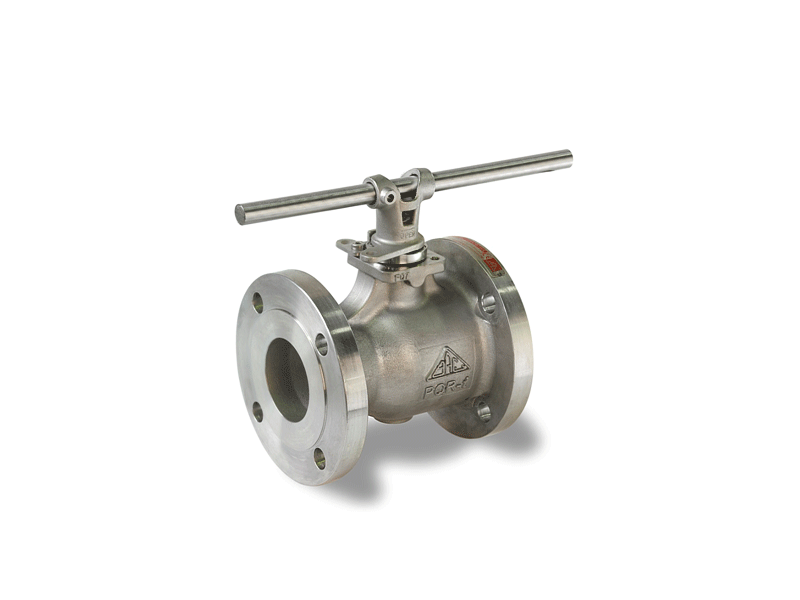

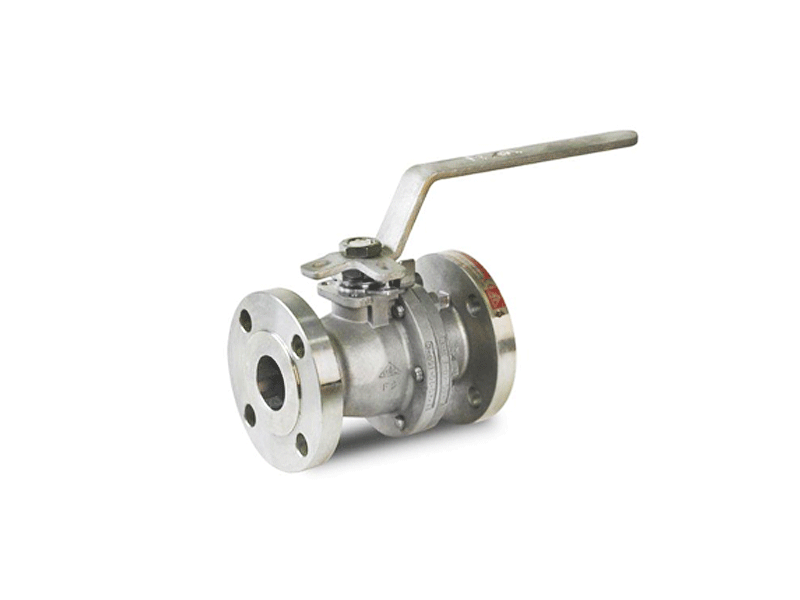

BALL VALVE ISO 17292
BALL VALVE ISO 17292
PQR-i
CLASS 150-300
NPS 1/2"x3/8-12"x10"
CONSTRUCTION
Reduced bore, one piece body, floating ball, relief seats, anti-static device, fire safe, pressure balance hole in ball, blow-out proof stem
CHARACTERISTICS
High performance, low emission double stuffing box.
Internal wetted parts are acc. NACE Standard MR0103
OPTIONS Cryogenic service
API 6D Emissions control port
STANDARDS
Design ISO 17292
End Flanges acc. to: ASME B16.5 RF
Face to face ASME B16.10 short pattern
Top flange          ISO 5211
Testings ISO 5208
Fire safe tested        ISO 10497 and API 607
APPROVALS
Fire safe tested Bureau Veritas
Type approval Det Norske Veritas
Germanischer Lloyd
Bureau Veritas
GOST-R Rostechnadzor permit
Shell Global Solutions
RINA
Nippon Kaji Kyokai
ABS
Russian Maritie Register of Shipping
Clean air TA-Luft (TÜV-Südwest)
SIL Certification Exida Certification - SIL 3
BALL VALVE ISO 17292
BALL VALVE ISO 17292
FB
CLASS 150-300
NPS 1/2"-8"
CONSTRUCTION
Full bore, split body, floating ball, high performance low emission double stuffing box, relief seats, anti-static device, fire safe, pressure balance hole in ball, blow-out proof stem.
CHARACTERISTICS
High performance, low emission double stuffing box.
Internal wetted parts are acc. NACE Standard MR0103
OPTIONS Cryogenic service Internal coating FBE / ECTFE
API 6D Emissions control port Metal to metal tightness
STANDARDS
Design ISO 17292
End Flanges acc. to: ASME B16.5 RF
Face to face ASME B16.10 short pattern
Top flange          ISO 5211
Testings ISO 5208
Fire safe tested        ISO 10497
APPROVALS
Fire safe tested Bureau Veritas
Type approval Det Norske Veritas
Germanischer Lloyd
Bureau Veritas
GOST-R Rostechnadzor permit
Shell Global Solutions
Nippon Kaji Kyokai
ABS
Russian Maritie Register of Shipping
Clean air TA-Luft (TÜV-Südwest)
ISO 15848-1 class BH (Bureau Veritas)
SIL Certification Exida Certification - SIL 3

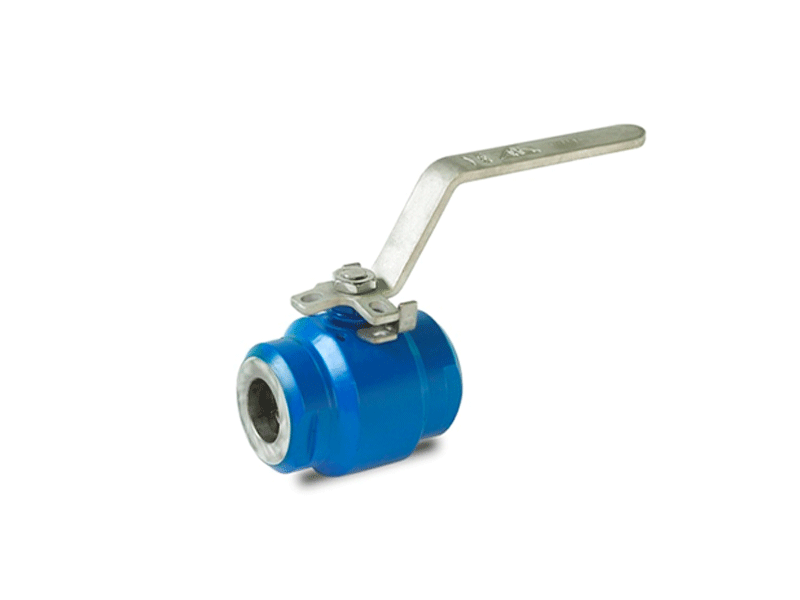

BALL VALVE ISO 17292
BALL VALVE ISO 17292
SR8 WELDED
CLASS 800
NPS 1/2"x3/8"-2"x1½"
CONSTRUCTION
Full or reduced bore, two piece body(screwed orwelded seal),floating ball,relief seats,anti-static device,fire safe,pressure balance hole in ball,blow-out proof stem.
CHARACTERISTICS
High performance, low emission double stuffing box.
Internal wetted parts are acc. NACE Standard MR0175
OPTIONS Butt weld (BW)  ASME B16.25
BS connection ISO 228/1 Nipples with SW, BW or male screwed ends
STANDARDS
Design ISO 17292
Connection Screwed (NPT) ASME
B1.20.1
Socket weld (SW) ISO 17292
Face to face Manuf, std.
Top flange          ISO 5211
Testings ISO 5208
Fire safe tested        ISO 10497
APPROVALS
Fire safe  Lloyd's Register
Bureau Veritas
Type approval Bureau Veritas
GOST-R Rostechnadzor permit
Russian Maritie Register of Shipping
Clean air TA-Luft (TÜV-Südwest)&nb )
